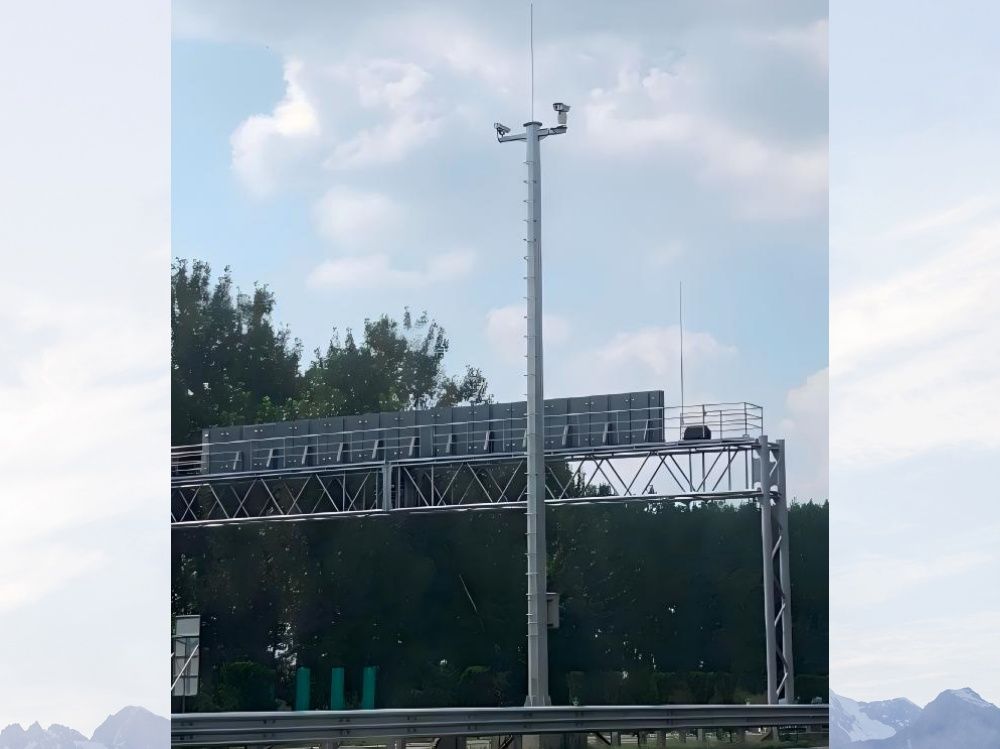

The monitoring equipment pole usually is for traffic regulation monitoring, such as speed, traffic light monitoring, guide line monitoring and etc., to improve the traffic security.
The monitoring poles also can add light source, as survelliance lighting pole.
Application usually are road crossing, schools, communities, factories, border defenses, airports and etc.
Monitoring Equipmeng Pole General Recommend Parameter
| Height (m) | 8m | 10m | 12m | 18m |
| Diameter (mm) | φ180-φ219 | φ180-φ219 | φ219-φ273/140-350 | φ273/140-380 |
| Thickness (mm) | 7/8 | 7/8 | 8/10/12 | 10/12 |
| Flange (mm) | Square 600 | Square800 | Square 800 | Square 800-1000 |
Hongrui Manufacturing delivers high-performance monitoring equipment columns and poles engineered for modern surveillance, traffic management, and IoT applications. Our CE-certified monitoring equipment columns (EN1090/ISO3834 compliant) combine structural durability with smart functionality to support critical infrastructure projects worldwide.
At Hongrui Manufacturing, we bridge the gap between traditional traffic light poles and advanced monitoring equipment poles through intelligent, multi-functional designs. While standard traffic light poles provide essential roadway signaling, our monitoring equipment poles evolve this critical infrastructure by integrating surveillance cameras, environmental sensors, and IoT connectivity—transforming passive structures into proactive smart city assets.
1. Surface coating uses high-quality polyester plastic powder, which is resistant to strong ultraviolet rays, suitable for coastal cities and heavy salt areas, and the average thickness of the plastic layer is not less than 80 microns.
2. Production procedure: melting active gas shielded welding, AWS ER70S-6 welding wire, indoor welding, reliable welding material quality, crack resistance, and small welding deformation.
3. Production Capability: 5000pcs/month
4. Lifespan: more than 30 years.
5. Monitoring equipment pole accessories: ground cage, bolts, nuts, gaskets, wires and cables, etc.
1.Traffic & Security: Intersection monitoring columns for license plate recognition, emergency call points
2.Utilities: Power line monitoring, transformer station surveillance
3.Smart Cities: Environmental sensing (air quality, noise, weather) via IoT monitoring columns
4.Construction Sites: Temporary monitoring equipment columns with real-time tilt alerts
1. General characteristics: the pole height, shape and thickness, the facility part according to customer request.
2. Monitoring Equipment pole material: Steel S235 and Steel S355.
3. Surface treatment: Hot-dip galvanizing, spraying plastics, and painting. For spraying plastic and painting, thickness and different color can be chosen.
Except the general characteristics, such as dimension and surface color, we can help our customers to design their own pole structure, customers only need to put forward their use needs and provide the local climate and site conditions, we can design the product for free.
Especially For different countries, the weather and seismic data must be taken into account in the designing to ensure the durability of the monitoring equipment pole.
All the products use international standard steel, the material complies with the provisions of EU standard and the welding procedure specification (WPS) in accordance with EN1090 requirements.
International certificates: ISO 9001, 1SO14001, ISO45001, EN12899-1, EN1090, and CE.
The monitoring equipment pole is installed by base cage, bolt and flange. It is easy-installation and we also can provide the installation guide on request. If you also need us to provide technical team to install on site, it's workable, and we charge only the labor cost.
The monitoring equipment pole is produced with quality material, meet with outdoor standard, usually no need to make special maintenance, if need maintenance you can by cage ladder or lift truck.
